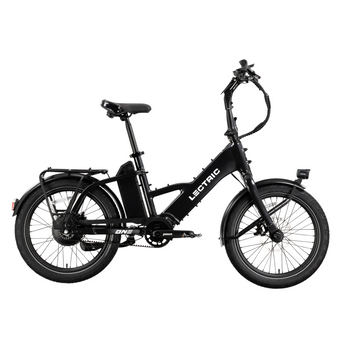

Lectric ONE Long-Range eBike
The Lectric ONE is where unparalleled creativity and world-class automotive technology converge to create a maintenance-free and truly effortless commute. A symphony of high-performance componentry from the smart shifting Pinion gearbox and the Gates Carbon Drive Belt orchestrates a masterpiece - shaping an eBike unlike any other. An aerodynamic frame, color display, and city tires take this riding experience to the next level while hydraulic brakes, brake-activated taillights, and reflective strips offer safety beyond compare.
Awarded 2024's Best Value Commuter by Bicycling Magazine.
Features
Size Guide
Specifications
Pedal-Assist
Five levels of pedal-assist and an ergonomic thumb throttle deliver the speed and power to own the road as a Class 1, 2, or 3 eBike.
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left-hand side is easily engaged with your thumb while reducing joint fatigue.

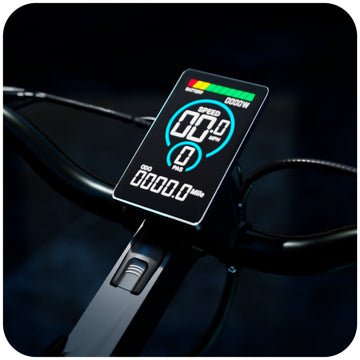

Color LCD Display
Backlit, heads-up color LCD display with a USB-A port provides trip and battery information. IP-65 rated components ensure water and dust resistance.
Motor Controller
24 amp controller is IP-65 rated and potted for weatherproofing and thermal management.

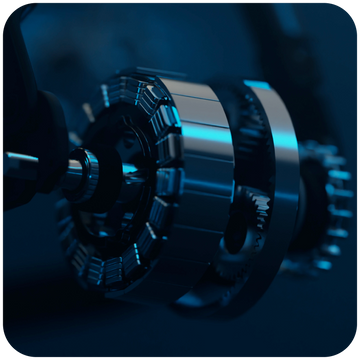

Motor
Sutto 750W rear hub motor (1310W peak) with 85Nm of torque delivers fast acceleration. Stealth M24 technology delivers a significantly quieter motor experience without sacrificing power.
Battery
Long-range removable 48V 14Ah (672 Wh) lithium-ion battery certified to UL 2271 delivers up to 60 miles per charge. The Lectric ONE is also certified to UL 2849.
Bike Weight
Total bike weight is 48 lbs with the 7 lb battery removed.
City Tires
20 x 2.5 inch city tires with reflective strips feature 3mm Hippo Skin, aramid floc breaker, and Shark Skin sidewall protection. Slime is pre-installed to prevent flats.
Front Fork
Rigid, fully aluminum front fork is ultra-lightweight and features a thru-axle dropout.
Thru Axle
Thru-axle front wheel attachment system ensures straight wheel alignment, consistent brake rotor positioning, and stable handling. Tool-free removal allows easy transport.
Pinion Gearbox
Pinion C1.6i six-speed sealed, weatherproof gearbox allows shifting at the push of a button while riding, stationary, or under load.

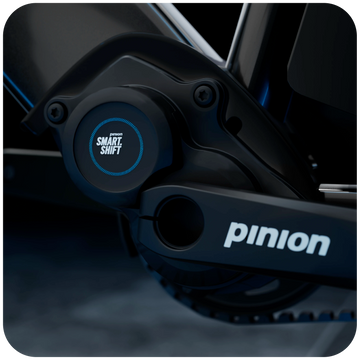

Pinion Smart.Shift App
Pinion Smart.Shift App combines gearbox functions with customizable settings, auto-shift pre-select, and start-select features for effortless riding.
Cranks
Pinion aluminum cranks measure 165mm in length.

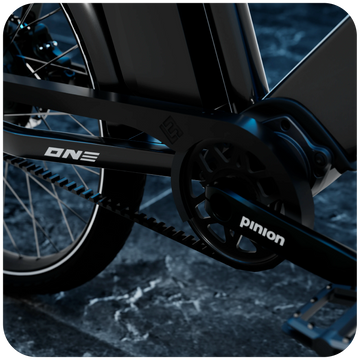

Belt Drive
Gates CDC 113-tooth Carbon Drive Belt System is carbon fiber reinforced, nearly maintenance-free, and delivers a clean, quiet, and smooth chainless drivetrain.
Gates Carbon Drive App
Gates app measures belt tension sonically using a mobile device microphone to determine if belt adjustments are needed.
Belt Cogs
Gates CDC 24-tooth steel rear belt cog paired with a CDX 39-tooth aluminum front cog provides optimized gear ratios across a wide speed range.
Brakes
Hydraulic mineral oil brakes with 180mm rotors (1.8mm thick) deliver reliable stopping power in wet or dry conditions.
Lectric PWR™
Lectric Pedal Assist Wattage Regulation (PWR) improves pedal assist by regulating power per PAS level instead of limiting assistance by speed. Learn more at https://lectricebikes.com/blogs/blog/all-about-pwr%E2%84%A2
PAS Sensor
Lectric PWR enables smooth pedal assist without a torque sensor by using a cadence sensor with 96 simulated magnets for responsive acceleration.
Safety Lights
Integrated lighting system includes a headlamp and brake-activated taillight powered by the battery for visibility at any time of day.
Charging
External charging port allows charging without removing the battery. Includes a 2 amp charger for 5–7 hour charging.
Telescoping Seat Post
Adjustable and removable seat post accommodates a wide range of rider heights while maintaining comfort and stability.
Adjustable Handlebar Stem
Quick-release adjustable stem riser allows easy handlebar reach adjustment for rider comfort.
Removable Pedals
Quick-release pedals detach easily for compact transport.
Lock-on Grips
Ergonomic lock-on grips provide added comfort and secure positioning with removable internal sleeves.
Saddle
Custom-designed saddle complements a sportier look while adding comfort for longer rides.
Kickstand
Heavy-duty side-sweeping kickstand located near the chain stay keeps the eBike upright.
Accessory Mounting Points
Multiple mounting points throughout the frame allow various accessory configurations.
Hidden Cable Routing
Main cables are routed inside the down tube for a clean, premium appearance.
Frame
6000-series aluminum frame is lightweight and sturdy. Chainstays feature vertical dropouts and split designs for belt-drive access.
Green Packaging
Packaging components are biodegradable and easily recyclable.
One Minute, Tool-Free Assembly
Assembly requires attaching the pedals, unfolding the handlebar stem, and installing the front wheel via the thru axle.
Safety Certified
The Lectric ONE is certified to UL 2849, and its lithium-ion battery is certified to UL 2271.
