Lectric XP4 Ebike Step-Thru
Effortless Access. Unstoppable Adventure.
The Lectric XP4 Step-Thru brings all the performance and portability of the beloved XP4 series with a frame design focused on comfort, convenience, and easy access. Whether you’re an everyday commuter, a weekend explorer, or just hopping on for a joyride, the Step-Thru frame makes mounting and dismounting a breeze—no matter your attire or mobility.
Choose between the classic 500W motor or the upgraded 750W version for extra power and longer range. Both models feature the latest upgrades, including a fully redesigned frame, in-house torque sensor for ultra-smooth pedal assist, full-color TFT display, and upgraded 602 hydraulic disc brakes for confident stopping in any condition.
Fold it. Store it. Take it anywhere. The XP4 Step-Thru is the go-anywhere eBike that fits your lifestyle—and your space.
Key Features (Both 500W & 750W Options):
-
Frame: Low-step design for easy on/off access
-
Motor Options:
-
500W (1092W peak)
-
750W upgraded version (1092W peak)
-
-
Top Speed: 28 mph
-
Range:
-
Up to 50 miles (500W)
-
Up to 85 miles (750W w/ 17.5Ah battery)
-
-
Brakes: Advanced 602 hydraulic disc brakes
-
Torque Sensor: Proprietary design for natural pedal feel
-
Display: Full-color TFT screen
-
Foldable: Yes — portable and travel-friendly
-
Tool-Free Assembly: Yes — ride-ready in minutes
-
Payload Capacity: 330 lbs
The XP4 Step-Thru is proof that performance and accessibility can ride side-by-side. Built for riders who want confidence, comfort, and capability—all in one compact electric package.
Features
Size Guide
Specifications
5 Riding Modes
Five riding modes deliver the speed and power to own the road as a Class 1, 2, or 3 eBike. Simplified labels include Eco, Tour, Sport, Sport+, and Turbo to let riders choose their ideal experience.
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left-hand side is easily engaged with your thumb while helping reduce joint fatigue.
Stealth M24 Motor
A 500W rear hub motor (1092W peak) with 55Nm of torque delivers faster acceleration and speed. Stealth M24 technology provides a quieter motor experience without sacrificing power.
Battery
Integrated and removable 48V, 10.4Ah (500Wh) lithium-ion battery certified to UL 2271. Provides up to 50 miles per charge and features a side-facing key port for easy removal. The XP4 is also certified to UL 2849.
Keyless Riding
Turn the bike on and off with the push of a button and ride without the key in the battery. Keys are required only for battery removal.
Rear Rack
Integrated rear rack supports up to 150 lbs and includes mounting bosses for accessories. Compatible with the optional LevelUp Rack for expanded carrying options.
Co-Pilot Capable
Compatible with the optional LevelUp Rack for mounting child seats such as the Thule Maxx Yepp Seat. For older passengers, the optional Buddy Seat adds a padded seat, handlebars, and foot pegs.
TFT LCD Display
Custom color TFT display with detachable mount and USB-C port. Displays trip data, battery level, and power output. Features intuitive menus and IP-X5 water resistance.
Tires with Slime
Puncture-resistant 20" x 3" tires designed for mixed terrain. Custom tread reduces rolling resistance and road noise. Slime is pre-installed at no extra cost to help prevent flats.

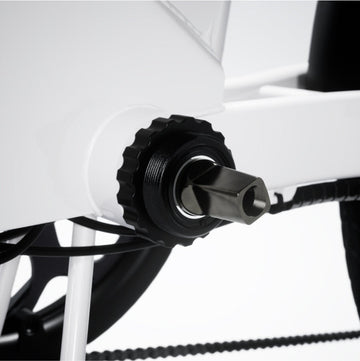

Torque Sensor
Proprietary torque sensor programming delivers smoother power distribution based on pedaling effort, allowing riders to reach higher speeds with greater control.
Drivetrain
8-speed drivetrain with an 11–32T freewheel, Shimano Altus derailleur, and below-the-bar trigger shifter for efficient pedaling and smooth gear changes.
Crankset
Forged aluminum crankset with a 56-tooth custom chainring optimized for effortless pedaling with 20-inch wheels.
Chain
KMC Z8 steel chain with chamfered inner plates for smooth shifting and consistent tension throughout the ride.
602 Hydraulic Brakes
Hydraulic disc brakes paired with 180mm rotors (2.3mm thick) provide powerful and reliable stopping performance in wet or dry conditions.
Safety Lights
Integrated lighting system includes a 90-lumen headlight with amber side lights and a brake-activated rear light powered by the internal battery.
Turn Signals
Built-in rear turn signals activated using the left or right buttons on the control pad to alert nearby drivers and riders.
Suspension Fork
Front suspension fork absorbs shock for a smoother ride. Adjustable tension and lockout allow tuning based on rider weight and payload.
Folding Kickstand
Heavy-duty steel side-sweeping kickstand positioned near the chainstay keeps the eBike upright and stable when parked.
Fenders
Durable polypropylene fenders with flared tails protect against debris while maintaining long-term flexibility and damage resistance.
Quick-Release Pedals
Custom 6000-series aluminum quick-release pedals allow tool-free removal and installation, with improved shape for better foot traction.
Lock-On Grips
Full-length ergonomic lock-on grips provide added comfort and secure positioning, with an internal plastic sleeve for easy removal.
Saddle
Custom-designed saddle offers a sporty appearance while enhancing comfort for longer rides.
Adjustable Handlebar Stem
Zero-degree adjustable stem shortens handlebar reach for a more upright riding position. Telescoping design accommodates a wide range of rider heights.
Telescoping Seat Post
Quick-release telescoping seat post allows easy height adjustment for a customized fit.
Fully Foldable
Foldable frame and handlebar stem allow compact storage. Pedals and seat post can be removed quickly for easy transport.
Weight
Total bike weight is 62 lbs without the battery installed. The battery weighs 7 lbs.
Easy Charging
Auxiliary charging port near the bottom bracket allows charging without removing the battery. Includes a 2A charger with optional 5A fast charger available.
Fully Redesigned Frame
Lightweight 6000-series aluminum frame with improved aesthetics and integrated mounting points for accessories.
Motor Controller
20-amp internal motor controller is IP-X5 rated and potted for enhanced weather resistance and thermal management.
Green Packaging
Packaging components are biodegradable and easily recyclable to reduce environmental impact.
Color
Tempest Grey.
One-Minute Tool-Free Assembly
Quick setup requires unfolding the stem assembly, inserting handlebars, and attaching pedals and display without tools.
Tested for Durability
Built and tested to meet ISO 4210 standards by a U.S.-based bicycle testing lab for long-term reliability.
Safety Certified
Electrical and battery systems are certified to UL 2849, with the lithium-ion battery additionally certified to UL 2271.
