Lectric XP4 Ebike Step-Over
Lectric XP4 Step-Over eBike
Redesigned for Power. Built for Adventure.
The Lectric XP4 Step-Over is the newest evolution of Lectric’s legendary XP series—crafted for riders who crave performance, versatility, and go-anywhere capability. With a bold, athletic frame and premium upgrades inside and out, this folding eBike is designed to dominate both city streets and rugged trails without sacrificing portability.
Whether you're commuting through traffic or escaping off the grid, the XP4 Step-Over is your all-in-one electric ride. Its in-house-designed torque sensor delivers smoother, more intuitive pedal assist for a natural cycling experience, while the full-color TFT display keeps your stats clear and colorful on the go.
You can choose between the standard 500W motor for balanced everyday performance or opt for the upgraded 750W version for more torque and up to 85 miles of range with the extended 17.5Ah battery.
Key Features:
-
Frame Design: Step-over style for added strength and sporty stance
-
Motor Options:
-
Standard: 500W brushless rear hub motor (1092W peak)
-
Upgrade: 750W motor with extended-range 17.5Ah battery
-
-
Top Speed: 28 mph (Class 3 performance)
-
Range:
-
Up to 50 miles (500W)
-
Up to 85 miles (750W upgrade)
-
-
Torque Sensor: Custom-designed by Lectric for smoother, smarter power delivery
-
Brakes: Advanced 602 hydraulic disc brakes for maximum stopping power
-
Display: Full-color TFT screen for ride data and system control
-
Foldable: Yes — folds down for easy transport and storage
-
Tool-Free Assembly: Ride-ready in minutes
-
Payload Capacity: 330 lbs
From daily rides to distant adventures, the Lectric XP4 Step-Over is built to go where you go—fast, fun, and fully equipped.
Features
Size Guide
Specifications
5 Riding Modes
Five riding modes deliver the speed and power to own the road as a Class 1, 2, or 3 eBike. New simplified labels include Eco, Tour, Sport, Sport+, and Turbo.
Thumb Throttle
An ergonomic below-the-bar trigger throttle on the left-hand side is easily engaged with your thumb while eliminating joint fatigue.
Stealth M24 Motor
500W rear hub motor (1092W peak) with 55Nm of torque delivers quick acceleration. Stealth M24 technology provides a quieter motor experience without sacrificing power.
Battery
Integrated and removable 48V, 10.4Ah (500Wh) lithium-ion battery certified to UL 2271 powers rides up to 50 miles. Side-facing key port allows easy battery removal. XP4 is also certified to UL 2849.
Keyless Riding
Turn the bike on and off with the push of a button. Keys are required only to remove the battery from the frame.
Rear Rack
Frame-integrated rear rack supports up to 150 lbs and includes mounting bosses for accessory combinations. Compatible with LevelUp Rack.
Co-Pilot Capable
Compatible with LevelUp Rack to support child seats such as the Thule Maxx Yepp Seat or the Buddy Seat for older passengers.

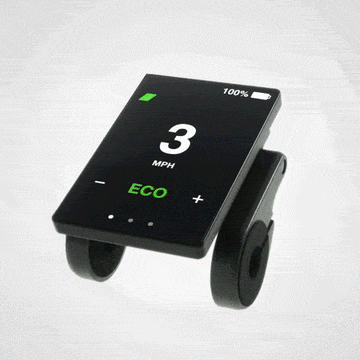

TFT LCD Display
Color TFT display with detachable mount and USB-C port provides trip, battery, and power data. Intuitive menus allow ride customization. IP-X5 rated for water resistance.
Tires with Slime
Puncture-resistant 20" x 3" tires with custom tread pattern provide smooth, efficient, and quiet performance. Slime is pre-installed to prevent flats.

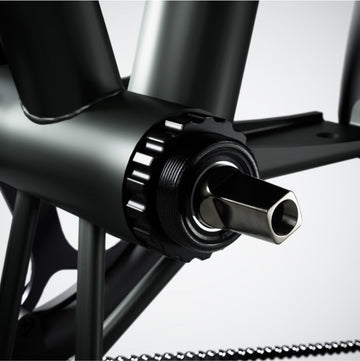

Torque Sensor
Proprietary torque sensor delivers smooth power distribution based on pedaling effort, allowing higher speeds with improved control.
Drivetrain
8-speed drivetrain with 11–32T freewheel, Shimano Altus derailleur, and below-the-bar trigger shifter for efficient pedaling at higher speeds.
Crankset
Forged aluminum crankset with a 56-tooth custom chainring optimized for 20-inch wheel pedaling.
Chain
KMC Z8 steel chain with chamfered inner plates ensures smooth shifting and consistent tension.
602 Hydraulic Brakes
Hydraulic brakes paired with 180mm rotors (2.3mm thick) deliver confident stopping power in wet or dry conditions.
Safety Lights
Integrated lighting system includes a 90-lumen headlamp with side amber lights and a brake-activated rear light.
Turn Signals
Integrated turn signals are activated via handlebar controls to alert nearby traffic.
Suspension Fork
Front suspension fork absorbs shock for a smooth ride. Adjustable tension and lockout allow tuning for payload and terrain.
Folding Kickstand
Heavy-duty steel side-sweeping kickstand positioned near the chainstay for stable parking.
Fenders
Durable polypropylene fenders with flared tails protect from debris and road spray.
Quick-Release Pedals
6000 Series aluminum quick-release pedals allow tool-free removal and improved foot traction.
Lock-on Grips
Full-length ergonomic lock-on grips enhance comfort and remain securely in place.
Saddle
Custom-designed saddle offers a sporty look with long-ride comfort.
Adjustable Handlebar Stem
Zero-degree adjustable stem shortens reach and supports upright riding with telescoping height adjustment.
Telescoping Seat Post
Quick-release adjustable seat post allows riders to easily dial in their ideal riding height.
Fully Foldable
Folding frame and handlebar stem allow compact storage. Seat post and pedals remove quickly for transport.
Weight
Total bike weight is 62 lbs without battery. Battery weight is 7 lbs.
Easy Charging
Auxiliary charging port allows charging without removing the battery. Includes 2A charger with optional 5A fast charger.
Fully Redesigned Frame
Lightweight 6000-series aluminum frame features improved aesthetics and multiple accessory mounting points.
Motor Controller
20 amp internal controller is IP-X5 rated and potted for thermal management and weather protection.
Green Packaging
Biodegradable and recyclable packaging materials are used.
Color
Tempest Grey.
One-Minute Tool-Free Assembly
Unfold the stem, insert handlebars, attach pedals, and mount the display screen.
Tested for Durability
XP4 has passed ISO 4210 testing through a US-based bicycle testing lab.
Safety Certified
XP4 is certified to UL 2849 and the battery is certified to UL 2271.
